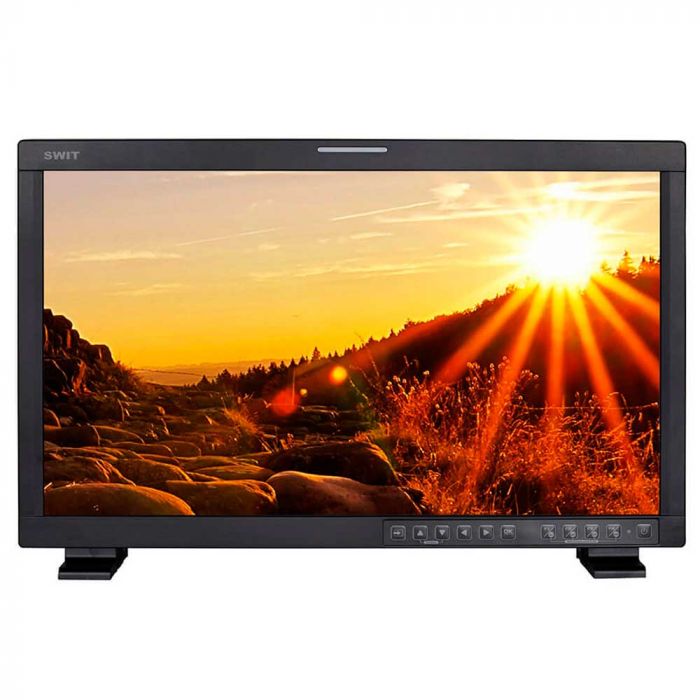

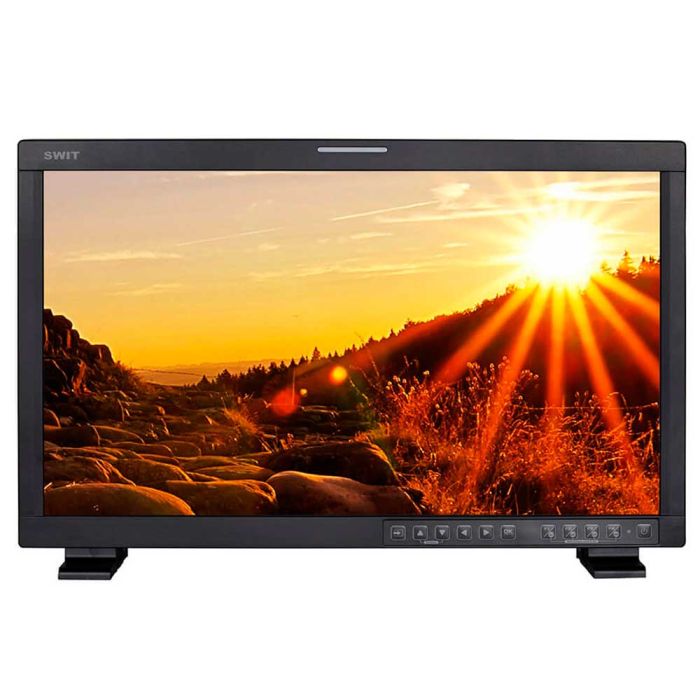

Swit FM-21HDR 21.5 High Bright Film Production Monitor

Swit FM-21HDR High Bright HDR Film Production Monitor

- 21.5” 1920×1080 non-glaring LCD
- 8-bit LCD, 12-bit internal process
- 1000 nits high bright
- 3G/HD/SD-SDI, HDMI and CVBS
- HDR LUTs: HLG & Dolby vision PQ
- Multi-camera logs to Rec.709
- DIT user 3DLUT cube upload by USB
- Waveform / Vector scope / Histogram
- 16-ch embedded audio meters
- Peaking focus assist with precision adjustment
- Exposure assist / Zebra / Blue only
- Anamorphic de-squeeze / Multiple markers
- USB firmware upgrade
- V-mount or 4-pin XLR or AC input
- C-stand mountable (optional)

Input/Output Interfaces
3G-SDI, HDMI

FM-21HDR monitor supports:
- 3G/HD/SD-SDI input × 2
- 3G/HD/SD-SDI loop output × 1
- HDMI 1.3 input × 1
- 3.5mm analog audio input × 1
- 3.5mm analog audio output × 1
- RS485 UMD input × 1
- RS485 UMD output × 1
- USB-A LUT/Firmware input × 1
